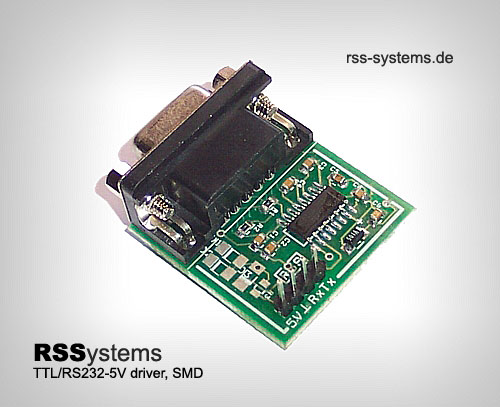

RS232-5V SMD
Serielle Schnittstelle, TTL/CMOS zu RS232-5V, LOW POWER, SMD Ausführung . Besonders geeignet für Kommunikation mit PC/Notebook.
Einsatzbereich:
- Entwicklung von MCU gesteuerten Geräten
- Kommunikation PC/Mikrocontroller, 5V level
Beschreibung:
Chip : MAX232D, SOIC
Voltage : +5V +/- 10%
Operate : up to 120 kbit/s
Low Suppy Current : 8mA Typical
Low pass : up to 56000bps(optional)
ESD Protection Exceeds JESD 22
-2000V Human Body Model(A114-A)
DC Filter : tantalum capacitors
Power dissipation : 533mW(6,7mW/°C)
Signal level : 5V
Temp. : 0 - 70°C
Connector : D-Sub. 9 Pol
Pin out : 5V, GND, Rx, Tx
Platine : 34 x30mm
Description:
The MAX232 is a dual driver/receiver that includes a capacitive voltage generator to supply TIA/EIA-232-F
voltage levels from a single 5-V supply. Each receiver converts TIA/EIA-232-F inputs to 5-V TTL/CMOS levels.
These receivers have a typical threshold of 1.3 V, a typical hysteresis of 0.5 V, and can accept ±30-V inputs.
Each driver converts TTL/CMOS input levels into TIA/EIA-232-F levels. The driver, receiver, and
voltage-generator functions are available as cells in the Texas Instruments LinASIC library
Applications :
- TIA/EIA-232-F, Battery-Powered Systems,
Terminals, Modems, and Computers
Mindestabnahme: 3 Stck.
LIEFERUMFANG:
- 1 TTL/RS232-5V Fertigmodul
- 1 Schaltplan/Bauplan/Pinbelegung Deu.
(schematic, assembl., pin out)
